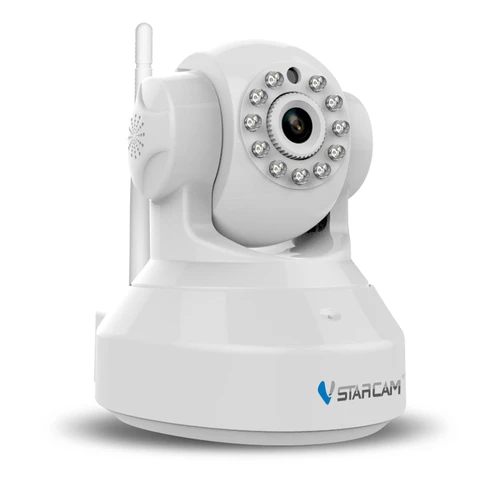

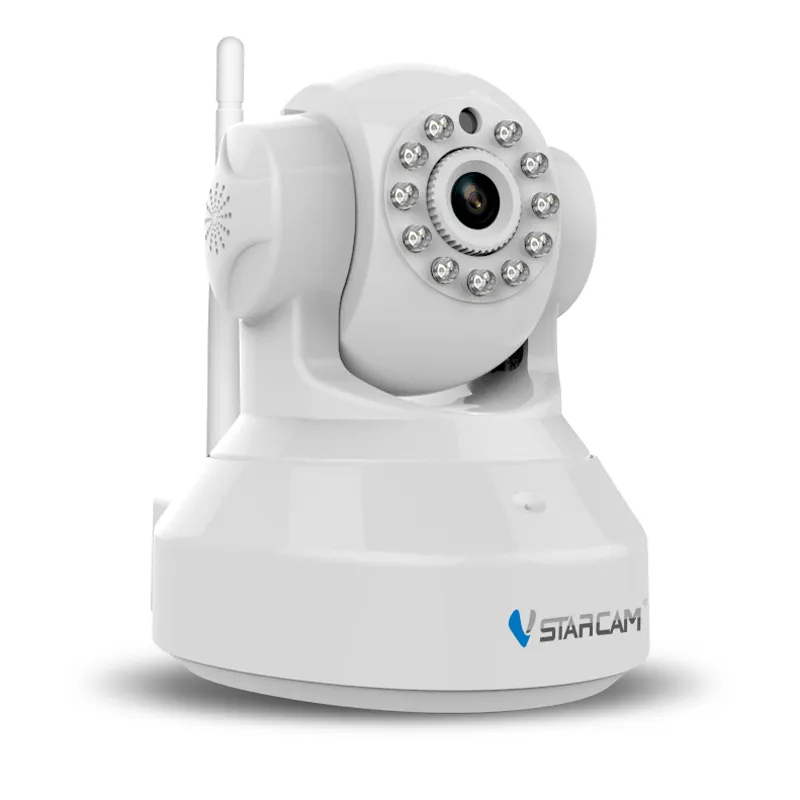

VSTARCAM C7837WIP HD 720P Wireless IP Camera

SKU: C7837WIP

$120.00
Share:
  • In Stock



  • The latest wave of the code , to achieve a key wireless WIFI connection. 12pcs LED, IR distance 10M. Lens 3.6 mm wireless security camera with memory card Support ONVIF 2.0, RTSP protocol.
  • WPS one key setup WiFi, acoustic wave wifi setting 720P,VGA,QVGA triple stream(NOTE:it just support 640*480 in firefox,goole chorome.It will be 1280*720P in IE BROWSER.)
  • Two-way audio(Note:Audio is not good), Remote Pan/Tilt rotate Wi-Fi/802.11/b/g/n,support dynamic IP.
  • Motion detection, email alert, FTP upload,Iphone, 3G 4G phone, IOS and android Smartphone supported(don't support windows APP)
  • Multi-language, Firefox, Safari, Google browser Pan:355 degree, Tilt: 120 degree, auto cruise Record onto micro SD card, supports up to 128GB (micro SD Card not included), record motion alert video to SD card automatically



Model : C7837WIP

Features

System security

Account, password authority management

Free DDNS

Free DDNS, supports dynamic IP.

View by phone

Support HD pic  IOS, Android mobile view (iOS 4.3,Android OS 2.3 above)

Local Storage

support up to 64GB MicroSD card ï¼Œ24-hour loop recording.

Monitor Advantage

Support PC computer monitoring, smartphone multi-pic view.

PnP

Plug & Play,99% penetration rate, Easy to setup: 1. connect the network cable and power adapter,

 2.install APP, scan UID code to add camera.  3,Click online camera to view the camera.

Sever cluster

Using Amazon Cloud PnP servier cluster, intelligent application and super stable

UID Technology

UID scan technology applied, easy to operate, and highly confidential.

Super Client

1,4,9,16,25,36, 64,81-channel central management software, no user number limitation ,

centralized surveillance, remote record and playback, alarm email ect.

System

OS

Embedded Linux OS

Control protocol

ONVIF 2.4 protocol, high interoperability

Video coding

Multi stream:720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture

Bit Rate

CBR/VBR, output bit rate range:128~4096kbps

Processor

Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor

Video

Compression Format

H.264 baseline profile@levels:3.1/Motion-JPEG

Frame rate

25fps/24fps(720p)

Resolution

720P(1280*720), VGA(640*360), QVGA(320*180)

Picture Adjustment

Contrast, Brightness, Saturation are adjustable.

Sensor

1/4 720p Progressive CMOS sensor

Minimum illumination

0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode)

SNR

≥39dB

IR control

IR turned on: night vision view enabled, infrared Ray, ICR auto detect.

IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.

Electronic shutter

1/50s(1/60s)-1/100, 000s

CMOS

support AWB, AGC, AE

 Lens/viewing angle

3.6mm@F1.4/56.14˚

Night Vision

Night vision

Dual IR-CUT Filter auto switch, 10pcs 850nmΦ5mm LED,10m IR distance

Audio

Compression format

ADPCM/32kbps

Output

1 Channel Line out (3.5mm phone jack)&Internal speaker(8Ω1W)

P/T

P/T

Pan:355°,Tilt:120°

Preset Postion

suppor up to 15 preset postions

Network

network interface

10Base-T/100Base-TX Ethernet interface

Network Protocol

TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc.

wireless network security

WPS encryption

Online visitor

Support 4 online visitors simutaneoursly

IP address

Dynamic IP and static IP address

WIFI

WIFI 802.11 b/g/n

Others

housing material

 engineering plastics

Application environment

Indoor

Rated Voltage

DC5±0.3V

Temperature

-10~50 °C

Power consumption

rated power:3.5W (IR opening )/maximum power:7W(P/T working )

Package size

195x140x130mm (L×W×H)

Weight

Gross Weight:755g(Note: in kind prevail)

Accessories

Power adapter, user manual, warranty card, mounting bracket, screws.

Alarm

Motion Detection

Support motion detecting

System Requirement

System configuration

/XP,Vista,iPhone iOS4.3,The android version 2.3 or higher

Certificate

Certificate

ISO FCC CE RoHS





Only for reference
