Bringing retail productivity and performance up to speed, the 1500 series of scanners offers powerful reliability with efficiency. Ideal for a wide range of applications from retail to healthcare and post offices, the 1500 scanner is not only advanced, but its ergonomic design also provides extreme durability – day in, day out.

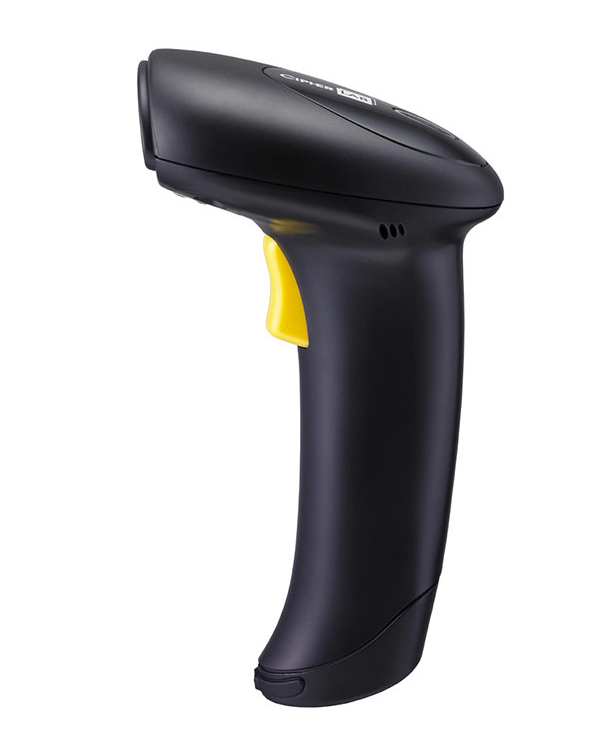

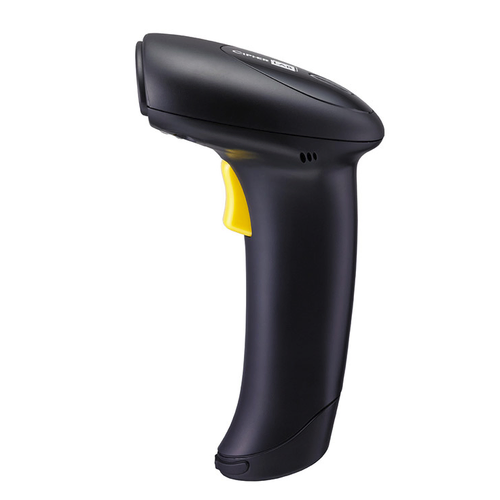

The 1504 corded 2D handheld barcode scanner combines versatility with speed and efficiency for a wide range of applications. Supporting both 1D and 2D barcodes, the 1504 reads high density 1D barcodes as small as 3 mil and 2D barcodes commonly printed on medicine packaging. The option of autosense scanning adds extra convenience and comfort for workers handling intensive scanning tasks. Full featured and fast, the 1504 is the best choice for retail, pharmaceutical, and post office settings.
1280 x 800 pixels
White LED (2x)
625 ±5 nm LEDs (2x)
3 mil - 1D barcode / 5 mil - 2D barcode
Depth of field
Code 39 3 mil: 4 to 9 cm / 1.6 to 3.5 in.
Code 39 5 mil: 3 to 14.5 cm / 1.2 to 5.7 in.
UPCA 13 mil: 3.5 to 30 cm / 1.4 to 11.8 in.
PDF417 5 mil: 3 to 10.5 cm / 1.2 to 4.1 in.
QR Code 10 mil: 2 to 16 cm / 0.8 to 6.3 in.
Pitch ±60° Skew±60°
60 scans/ second
Auto-sense and presentation modes
1D: All of the bacodes that 1500 series 1D scanners can support
2D: PDF417, MicroPDF417, DataMatrix, QR code, Micro QR code, Aztec, Maxicode
1D: All of the bacodes that 1500 series 1D scanners can support except French Pharmacodes, Plessey and Telepen
2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode
Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX)
