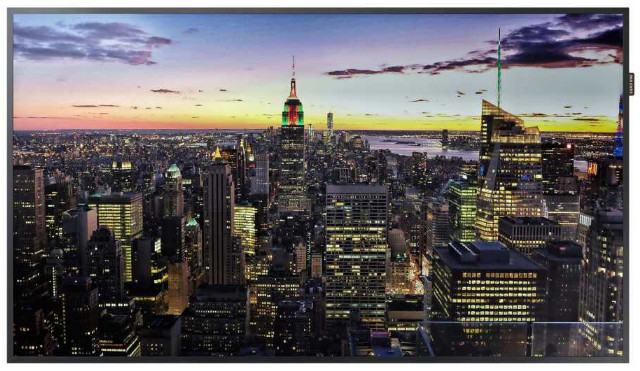

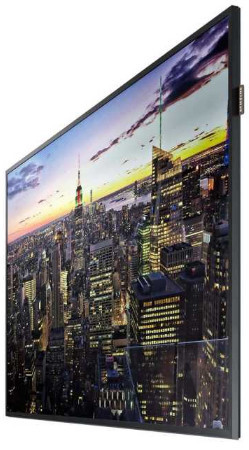

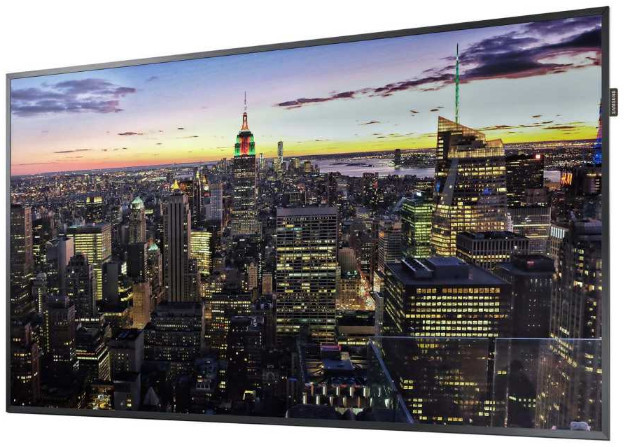

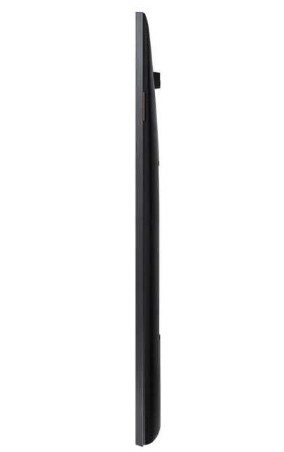

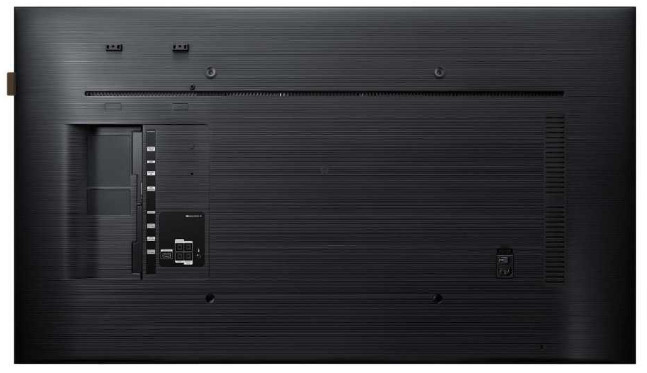

Samsung QM55H 55" Professional Display WiFi Embedded UHD 500CD/M2 Brightness 24/7 Operation 1235.3mm x 710.4mm x 36.8mm
- In Stock
Processing time (after payment approval): Leaves warehouse in 1 – 2 business days (typically within 24 hours)
AUSSIE SELLER
WARRANTY
EXPRESS
SUPPORT
SKU: QM55H
Advertise your product or business digitally with the Samsung QM55H 55"-Class UHD Commercial Smart LED DisplayU. It has two USB 2.0 inputs with an embedded media player that can play a variety of digitally stored content, or you can plug your source into it via its DisplayPort, DVI-D, or two HDMI inputs. Its HDMI output will allow you to daisy-chain multiple displays for video walls as large as 2x2. Dual 10W speakers are built-in to ensure that your message is heard as well as seen.
The 60 Hz refresh rate will help smooth out fast-moving video, while the display's 500 cd/m² of brightness and 4000:1 contrast ratio will help your advertisements be seen clearly in areas with ambient light. The QM55H is IP5X and 24/7-rated for uninterrupted advertising, even in dusty environments. The display includes an IR remote control for added convenience.
4K UHD Picture Quality
3840 x 2160 UHD resolution (four times the number of pixels of Full HD 1080p) is designed to deliver life-like image quality.
Non-Glare Panel for Enhanced Visibility
The non-glare panel features 500 cd/m² of brightness to help improve the visibility of your message by reducing reflection, enhancing the readability of text and imagery.
IP5X and 24/7 Usage Ratings
The QM55H is designed for 24/7 continuous use with enhanced cooling technologies and an IP5X dust-resistant rating, allowing it to be installed in dusty environments without an additional housing while meeting round-the-clock operating requirements.
All-in-One Signage Solution
Samsung's SMART Signage Platform 5.0, backed by the Tizen 3.0 operating system, is designed to deliver an all-in-one signage solution with an embedded System-on-Chip (SoC) semiconductor. In addition to the integrated media player and graphic presentation features, the QM55H lets you deliver targeted and personalized real-time messaging through the application-based Beacon management technology, all without a computer.
Designed for Seamless Configuration for Multiple Displays
Configure multiple displays seamlessly with the HDMI output for multi-display UHD daisy chains up to 2x2 in size.
Built-In Wi-Fi & Bluetooth
Enjoy the versatility of expanded connectivity to mobile devices, from media sharing and screen control to content mirroring from a tablet or mobile phone to your display.
Enhanced Connectivity

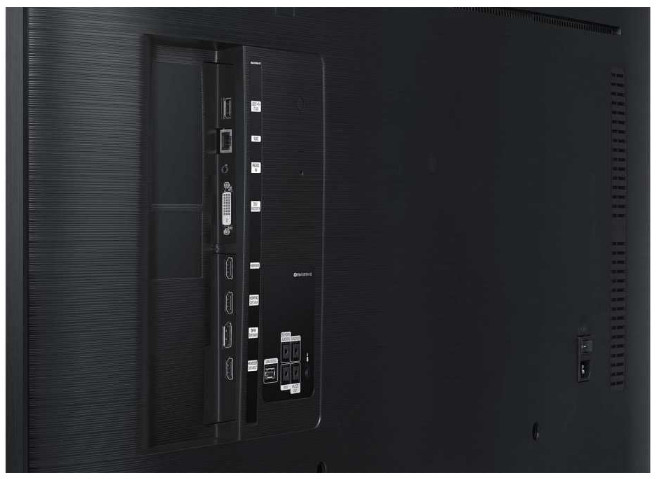

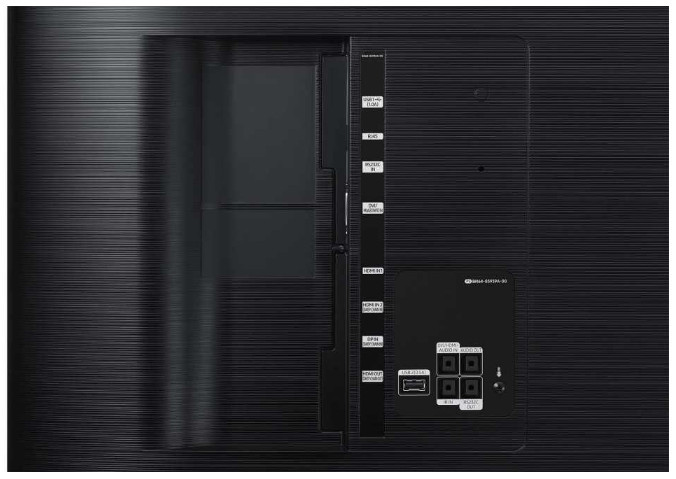

The QM55H features multiple connectivity options to display a wide range of content for your audience. Connections include DVI-D, Display Port 1.2, HDMI 2.0, USB 2.0, RS232C, Ethernet, and more.
Panel | |||
Diagonal Size | 55 | ||
Type | 60Hz E-LED BLU | ||
Resolution | 3840*2160 (4K UHD) | ||
Pixel Pitch(mm) | 0.105 x 0.315 (mm) | ||
Active Display Area(mm) | 1209.60(H) x 680.40(V) | ||
Brightness(Typ.) | 500 nit | ||
Contrast Ratio | 4000:01:00 | ||
Viewing Angle(H/V) | 178/178 | ||
Response Time(G-to-G) | 8ms (Typ) | ||
Display Colors | 16.7M(True Display) 1.07B(Ditherd 10bit) | ||
Color Gamut | 72% | ||
Operation Hour | 24/7 | ||
Haze | 25% | ||
Display | |||
Dynamic C/R | Mega | H-Scanning Frequency | 30 ~ 81kHZ |
V-Scanning Frequency | 48 ~ 75HZ | Maximum Pixel Frequency | 594MHz |
Display | |||
Speaker Type | Built in Speaker(10W + 10W) | ||
Connectivity | |||
Input | |||
RGB | DVI-D, Display Port 1.2 (1) | ||
Video | HDMI 2.0 (2) | ||
HDCP | HDCP2.2 | ||
Audio | Stereo mini Jack, DVI, HDMI | ||
Usb | USB 2.0 x 2 | ||
Output | |||
RGB | HDMI 2.0 (Loop-out) | ||
Video | N/A | ||
Audio | Stereo mini Jack | ||
Power Out | N/A | ||
External Control | RS232C(in/out), RJ45 | ||
External Sensor | IR | ||
Tuner | N/A | ||
Power | |||
Type | Internal | ||
Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | ||
Power Consumption | |||
Max[W/h] | 165 | ||
Typical[W/h] | 111 | ||
BTU(Max) | N/A | ||
Sleep mode | less than 0.5W | ||
Off mode | less than 0.5W | ||
Mechanical Specification | |||
Dimension (mm) | Set | 1235.3 X 710.4 X 36.8 | |
Package | 1335.0 x 812.0 x 182.0 | ||
Weight (kg) | Set | 17.1 | |
Package | 23.2 | ||
VESA Mount (mm) | 400x400 | ||
Protection Glass | N/A | ||
Stand Type | Foot Stand (Optional) | ||
Media Player Option Type | N/A | ||
Bezel Width (mm) | 11.0/11.0/12.0 | ||
Operation | |||
Operating Temperature | 0.0 ℃ ~ 40.0 ℃ | Humidity | 10.0 % ~ 80.0 % |
Feature | |||
Key Features | UHD Signage Display Slim & Light Signage with Built-in MagicInfo S5, SSSP 5.0 | ||
Special Features | H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x, Wi-Fi/BT S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | ||
Internal Player | Processor | Cortex A72 1.7GHz Quad-Core CPU | |
On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | ||
Clock Speed | 1.7GHz Quad-Core CPU | ||
Main Memory Interface | 3GB 3ch 64bit LPDDR4 1.6GHz | ||
Graphics | 2D & 3D Graphic Accelerator Data Format : 32bpp Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.) | ||
Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | ||
Multimedia | Video Decoder - MPEG 1/2/4, H.263, H.264/AVC - UHD H.264/AVC, VC-1, AVS/AVS+, MVC - VP8, VP9, HEVC, JPEG Audio DSP(Decoder) - MPEG, AC3, AC4, DD, MP3 and etc | ||
IO Ports | USB 2.0 | ||
Operating System | Tizen 3.0 (VDLinux) | ||
Certification | |||
Safety | 60950-1 | ||
EMC | Class A | ||
Accessory | |||
Included | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | ||
Optional | Stand | STN-L4655E | |
Mount | WMN4270SD | ||
Specialty | CLM450D | ||
Media Player | |||
Media Player | SBB |
SKU | QM55H |
Barcode # | 8806088858838 |
Brand | Samsung |
